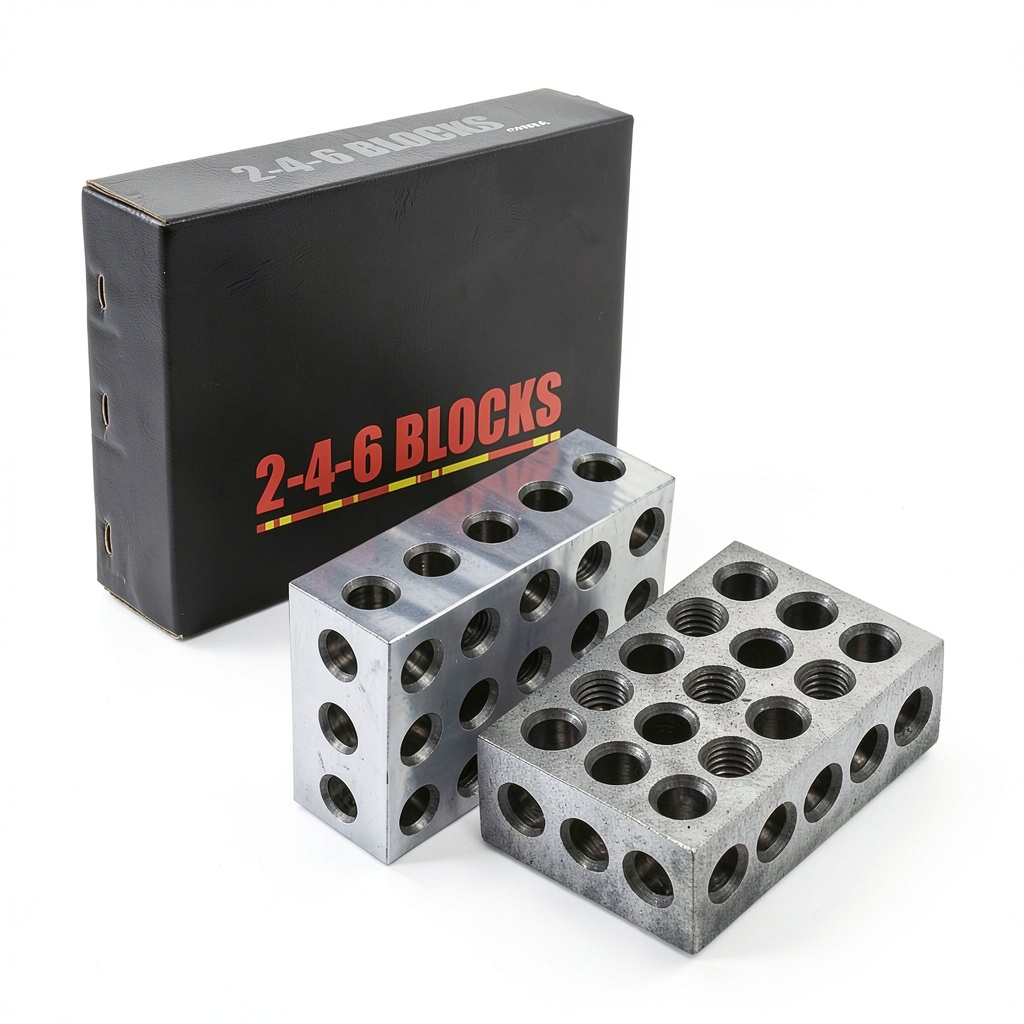

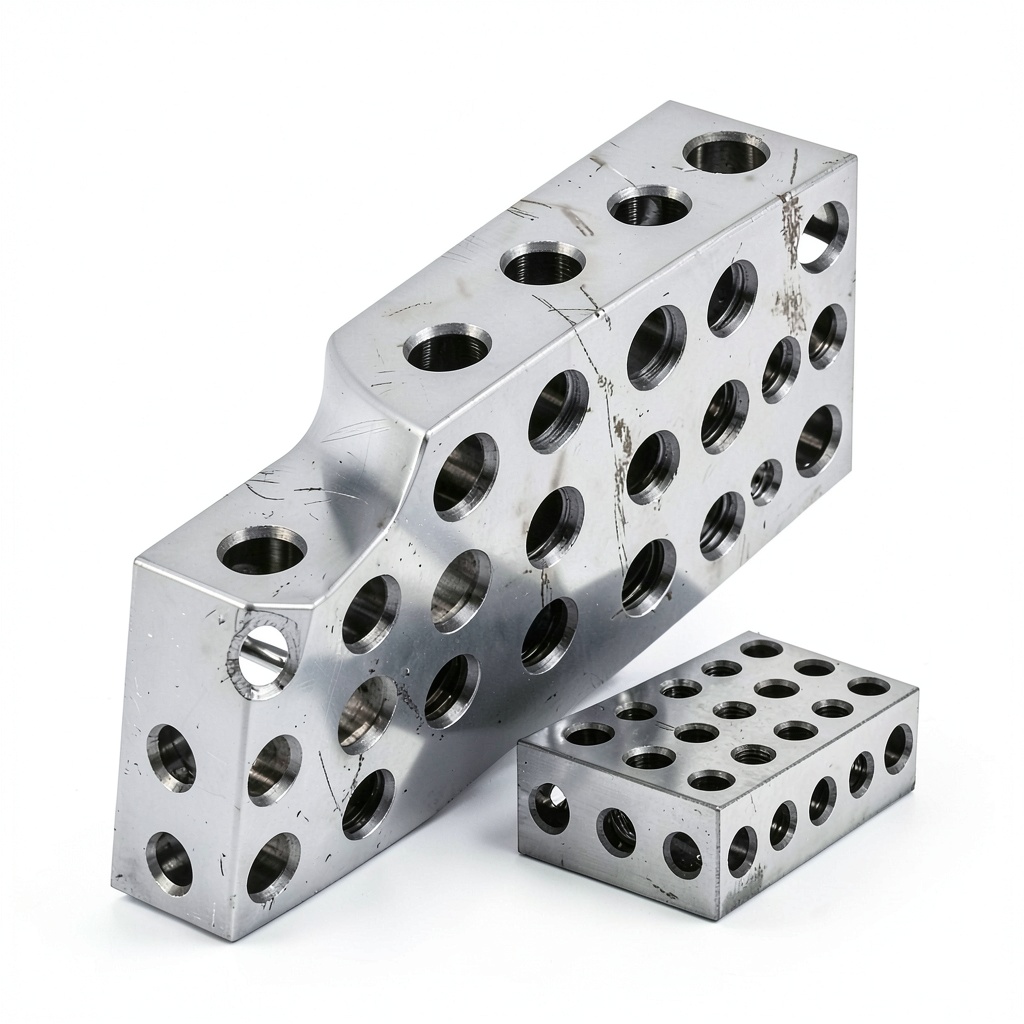

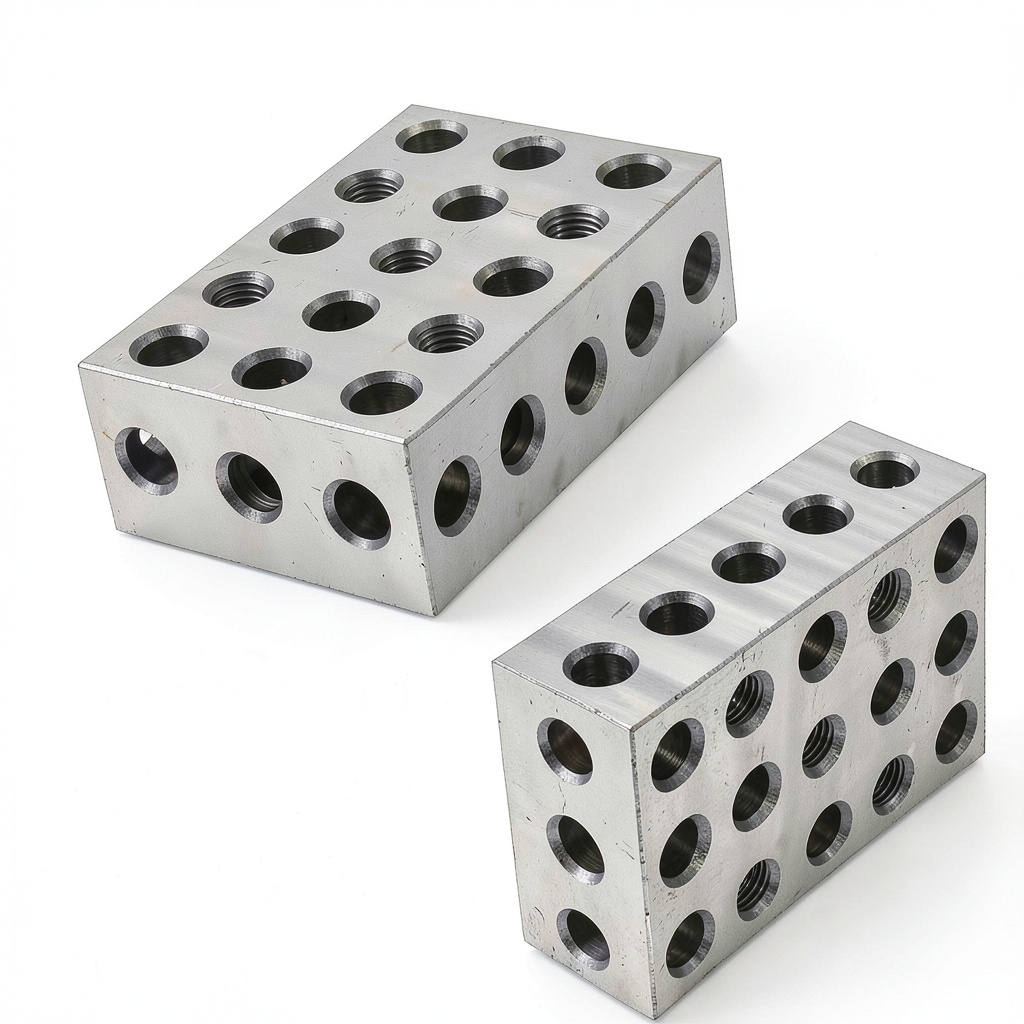

Ultra Precision 2 x 4 x 6 Inch Blocks 23 Holes Accuracy 0.0002 Inch Suitable for Milling Machines for Setup, Layout and Inspection Jobs 1 Pairs

Description

Product Overview

The Ultra Precision V Block from LiGuVCY is engineered for the most demanding calibration and setup environments. Constructed from high‑grade steel, the block provides exceptional rigidity while keeping weight manageable for easy handling on the shop floor.

Each block measures 2 x 4 x 6 inches and is machined to a tolerance of ±0.0002 inch on all faces, guaranteeing square and true surfaces for repeatable results. The cross‑drilled design removes excess material, delivering maximum strength where it matters most without adding unnecessary mass.

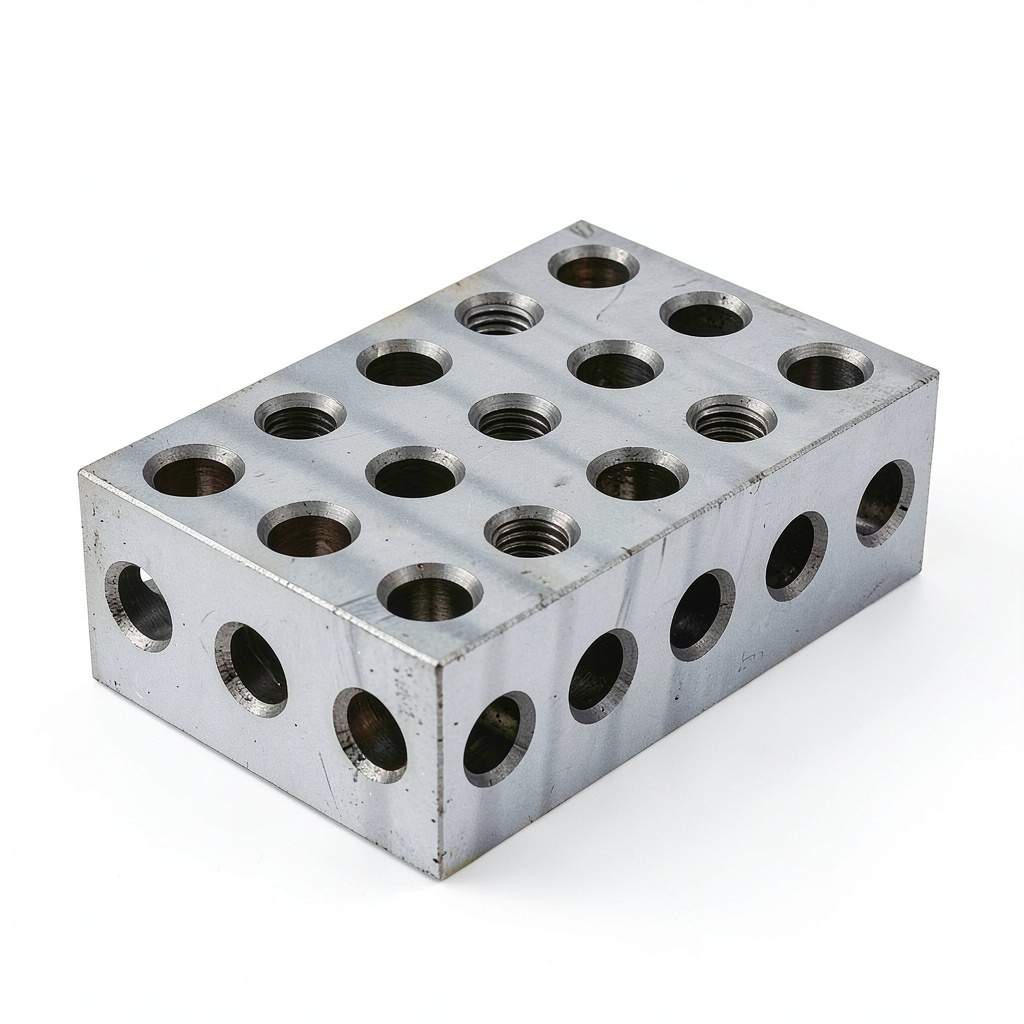

Twenty‑three precision‑drilled holes are distributed across the block, with five 3/8‑16 tapped holes ready for secure clamping. The remaining eighteen untapped holes accommodate a variety of accessories, allowing users to customize setups for specific tooling or inspection fixtures.</n

Designed specifically for milling machines, the block serves as a reliable reference for setup, layout, and inspection jobs. Its dimensional stability ensures that measurements remain consistent even after prolonged use in high‑temperature environments.

LiGuVCY’s commitment to quality is reflected in the rigorous testing each block undergoes. From material selection to final inspection, every step is documented to meet industry standards for dimensional calibration equipment.

With a weight of 18.28 pounds, the block offers a solid feel that reduces vibration during machining operations, contributing to higher accuracy and longer tool life.

Customers consistently rate the block highly, with an average rating of 4.2 stars based on twelve verified reviews, highlighting its reliability and precision.

Whether you are a professional machinist, a quality‑control engineer, or an academic researcher, this V Block provides the confidence needed to achieve precise, repeatable results.

Usage

In a typical milling machine setup, the block is mounted on a worktable or fixture plate, providing a stable reference surface for aligning workpieces. Its flat faces serve as datum planes for locating tools and verifying part geometry.

For layout work, the drilled holes enable quick placement of pins, dowels, or fixtures, allowing technicians to establish accurate reference points without the need for additional tooling.

Inspection tasks benefit from the block’s high‑precision surfaces, which can be used in conjunction with height gauges, surface plates, and coordinate measuring machines to verify dimensions and flatness of manufactured parts.

The block’s versatility extends to educational settings, where it can be used in training labs to demonstrate fundamental principles of metrology, fixture design, and machine alignment.

In environments where temperature fluctuations are common, the steel construction maintains dimensional stability, ensuring that calibration remains accurate throughout the workday.

Maintenance is straightforward: a simple wipe with a lint‑free cloth removes debris, and periodic inspection of the tapped holes ensures they remain free of corrosion.

Why Choose Us

LiGuVCY’s V Block stands out for its combination of precision, durability, and thoughtful design. The ±0.0002 inch tolerance is achieved through advanced CNC machining processes that guarantee consistency across every unit.

Our blocks are sourced from premium steel alloys that resist wear and deformation, delivering a long service life even under heavy usage.

Customer support includes a dedicated technical assistance line and a comprehensive warranty that covers material defects, giving users peace of mind with every purchase.

We provide detailed documentation, including dimensional drawings and hole pattern schematics, to help customers integrate the block seamlessly into existing workflows.

Each block is inspected and calibrated before shipment, ensuring that you receive a product that meets or exceeds industry standards for dimensional calibration.

Our commitment to continuous improvement means we regularly gather feedback from users to refine designs, ensuring that future generations of V Blocks incorporate the latest advancements in metrology.

Key Features

• Ultra‑high precision with ±0.0002 inch tolerance for reliable measurements.
• Robust steel construction offers long‑term durability and resistance to wear.
• 23 strategically placed holes, including five 3/8‑16 tapped holes for versatile clamping.
• Cross‑drilled design reduces weight while maintaining maximum strength where needed.
• Comprehensive after‑sales support and warranty for added customer confidence.

FAQ

What material is the V Block made from?

The block is machined from high‑grade carbon steel that has been heat‑treated for optimal hardness and dimensional stability.

Can the tapped holes be used with standard clamps?

Yes, the five 3/8‑16 tapped holes are compatible with most standard milling machine clamps and fixtures, allowing secure attachment of workpieces.

How do I maintain the accuracy of the block over time?

Regularly clean the block with a lint‑free cloth, avoid exposure to corrosive chemicals, and periodically check the tapped holes for wear. Re‑calibration can be performed using a calibrated height gauge if needed.

Is this block suitable for use with CNC machines?

Absolutely. The block’s precise dimensions and stable material make it an excellent reference for CNC milling setups, ensuring repeatable positioning and accurate machining.

What is the warranty coverage for this product?

LiGuVCY offers a one‑year limited warranty covering material defects and workmanship. Technical support is available throughout the warranty period to assist with any questions or issues.
